KEY ADVANTAGES

  • Body Composition Analysis

    Body Composition Analysis

    3D animation to show training suggestions and set goals.

  • Postural Assessment

    Postural Assessment

    3D sensor camera capturing technology,

  • Functional Assessment

    Functional Assessment

    To monitor every movement of tester by Al.

  • Child Mode

    Child Mode

    Children & Adults, dual-mode compatibility.

  • Face ID

    Face ID

    location by key points on face and face tracking technology

  • High-definition screen mirroring

    High-definition screen mirroring

    Connecting HDMI,the image and sound can be synchronized to the screen

  • Multi Terminals

    Multi Terminals

    The assessment data can be synchronized to different devices.

  • Report Sharing

    Report Sharing

    Support using mini-programs to view and compare workout results

  • Open API Access

    Open API Access

    Help customers, SaaS and other organizations to achieve intelligent scene application.

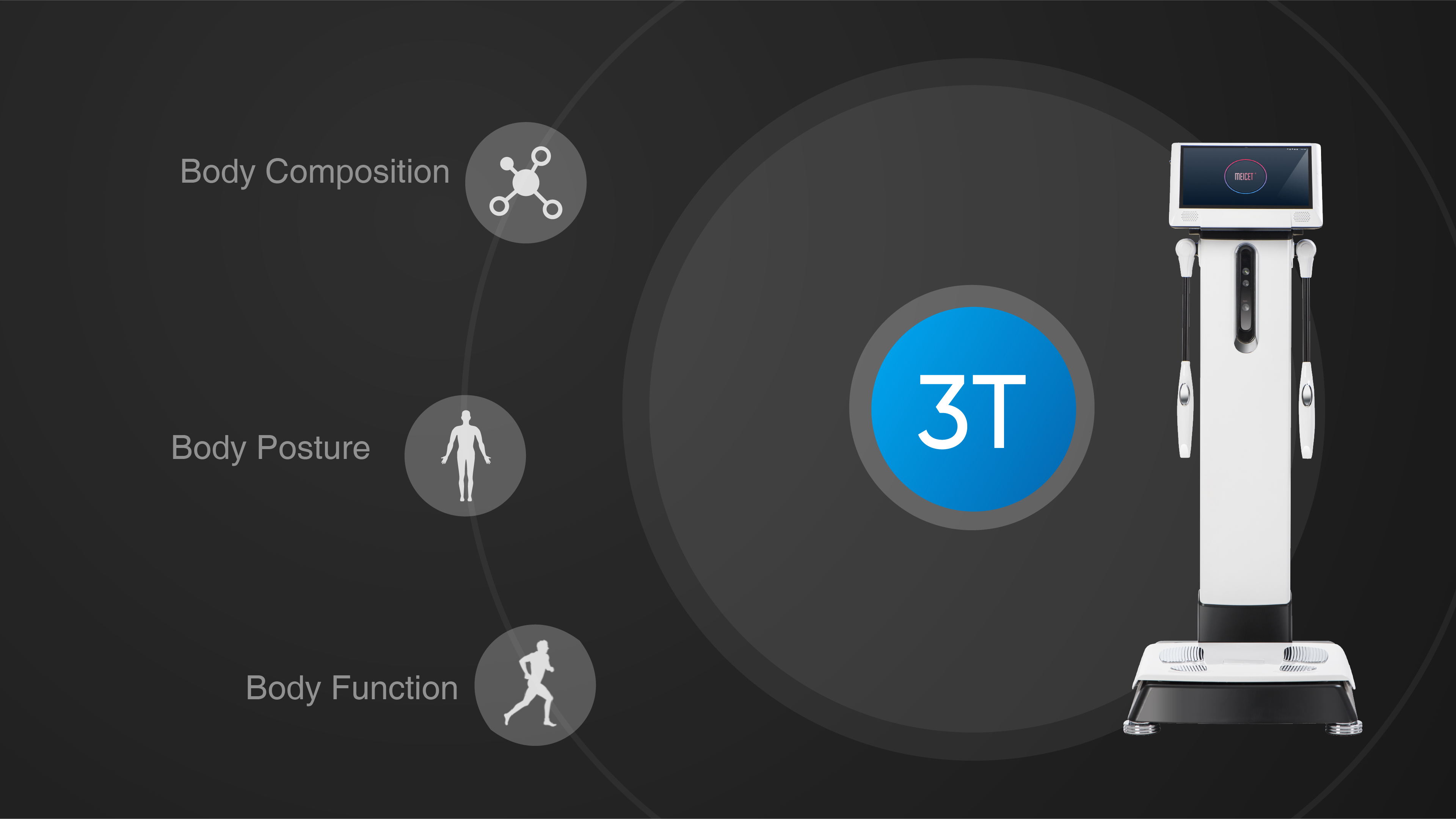

3D Intelligent Body Analyzer Machine BCA200

—————————————————————————————————

The MEICET BCA200 is a comprehensive measurement device based on the principles of bioelectrical impedance analysis and 3D imaging technology. It enables a complete body assessment from internal to external, static to dynamic, by analyzing body composition, body morphology, and physical function data. It provides a holistic evaluation of health status and athletic performance. Through data quantification, analysis, and comparison, it facilitates digitized health management.画板 1 副本 2@2x-100



Body Composition Analysis

3D animation to show training suggestions and set goals

Body Composition Analysis

3D Body Posture Analysis

3D sensor camera capturing technology, based on self-developed visual algorithm and human body model, carries out 3D measurement with millimeter accuracy,checks the body posture fully,predicts the risk of bad posture, realizes the digitization of measurements, and establishes the standardization of body posture assessment.

3D Body Posture Analysis

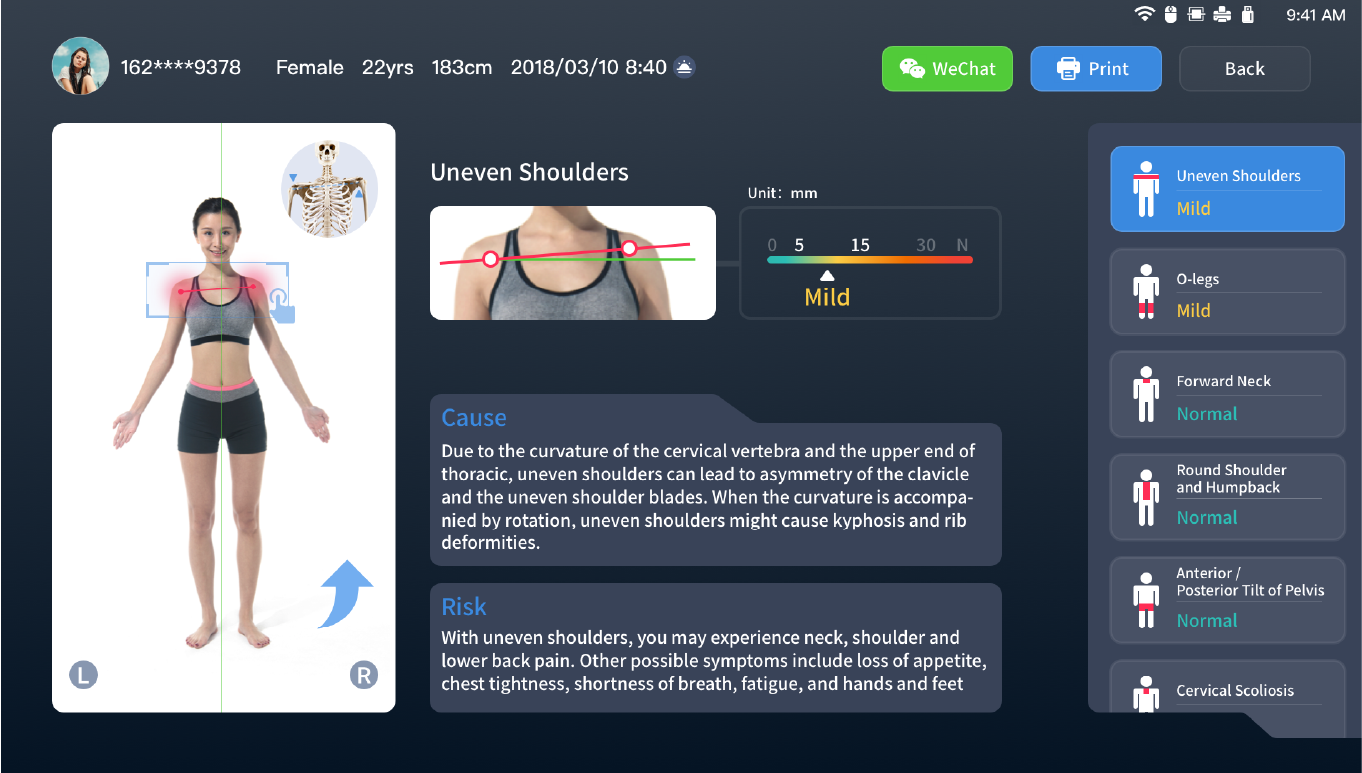

Display of Postural Assessment

———————————————————–

It’s clear to see nine bad postures at a glance.Multidimensional Symptom Analysis and Health Risk Prediction for Early Intervention.资源 30



  • Uneven Shoulders
  • O X Type Legs
  • Neck Forward
  • Round Shoulder and Humpback
  • Anterior Posterior Tilt of Pelvis
  • Knee Overextension
  • Cervical Scoliosis
  • Scoliosis
  • Uneven Shoulders
    O X Type Legs
    Neck Forward
    Round Shoulder and Humpback
    Anterior Posterior Tilt of Pelvis
    Knee Overextension
    Cervical Scoliosis
    Scoliosis

    Body Shape and Proportion

    Through the presentation of body shape comparisons, we will help you gain a deeper understanding of body proportions such as head-to-body ratio, leg-to-body ratio, waist-to-hip ratio, and shoulder-to-waist ratio. This will enable you to achieve more intuitive and precise results in beauty training.

    Body Shape and Proportion

    Children & Adults, dual-mode compatibility

    Pioneering the 'Body Composition + Body Posture' assessment method for children, focusing on common postural issues during their growth process. Digitizing the tracking and management of children's growth trends, it helps parents and coaches intervene with targeted training at an earlier stage.

    Children & Adults, dual-mode compatibility

    Balanced Result Display

    Balanced Result Display
    Software Advantages
    • Adopting self-developed dynamic evaluation system

      Adopting self-developed dynamic evaluation system

      To monitor every movement of tester by Al,and adopting self-developed dynamic evaluation system,Combining with the most advanced artificial intelligence technologies such as computer vision and deep learning neural network model.Capturing the action behavior of the body tester. the movement ability of the body tester, and the risk of movement is prevented.At the same time, excellent human-computer interaction can bring better measurement experience for testers.

    • Face ID

      Face ID

      Subverting the traditional login method, location by key points on face and face tracking technology,using the "Client + Cloud" ways,high precision matching,so that users can measure more efficiently。

    • High-definition screen mirroring

      High-definition screen mirroring

      Connecting HDMI,the image and sound can be synchronized to the screen to meet the particular needs.

    • Multi Terminals

      Multi Terminals

      The assessment data can be synchronized to different devicese.g: PC, PAD, cell, cloud to manage more efficient.No consumables, paperless, more environmentally friendly.

    • Report sharing

      Report sharing

      Support using mini-programs to view and compare workout results. Generate a shared page with the merchant's QR code to facilitate member referrals and generate word-of-mouth marketing.

    • Open API Access

      Open API Access

      Help customers, SaaS and other organizations to achieve intelligent scene application.

    资源 15

    Parameters

    —————————————————————————————————–



    Device Name     MEICET Intelligent Physical Assessment Instrument

    —————————————————————————————————————————

    Device Type       BCA200                                            Producing Area   China

    —————————————————————————————————————————

    Device Size         452*667*1145 mm             Packing Size  1170*570*280mm

    —————————————————————————————————————————

    Device Net Weight                        23 kg

    —————————————————————————————————————————

    Adapter    Input: AC 100-240V 50/60Hz 1A

                        Output: DC 12V3.33A

    —————————————————————————————————————————

    External Interface

                                Network Interface*1,HDMI*1,USB2.0*1

                                USB3.0*1,Power Interface*1

    —————————————————————————————————————————

    WIFI                     2.4GHz&5GHz                       Bluetooth          4.0 Bluetooth

    —————————————————————————————————————————

    Extended Function

                     NFC,Bluetooth Access,API Access,APP & SaaS Access

    —————————————————————————————————————————

    Operating Environment

                                        Temperature 10-40°C,Humidity 30%-80%RH

    —————————————————————————————————————————

    Testing Weight Range               10 kg-260 kg

    —————————————————————————————————————————

    Testing Age Range                    3-99 years old

    —————————————————————————————————————————

    Testing Height Range               90 cm -240 cm
